AFANTI 2.5MPa Air Compressor System Pressure Gauge | 0-25 Bar | Black Steel Case | Brass BSP Thread |
$59.99
$69.99
SaleSold Out
Free worldwide shipping
Free returns
Carbon neutral
Secure payments
Product Description

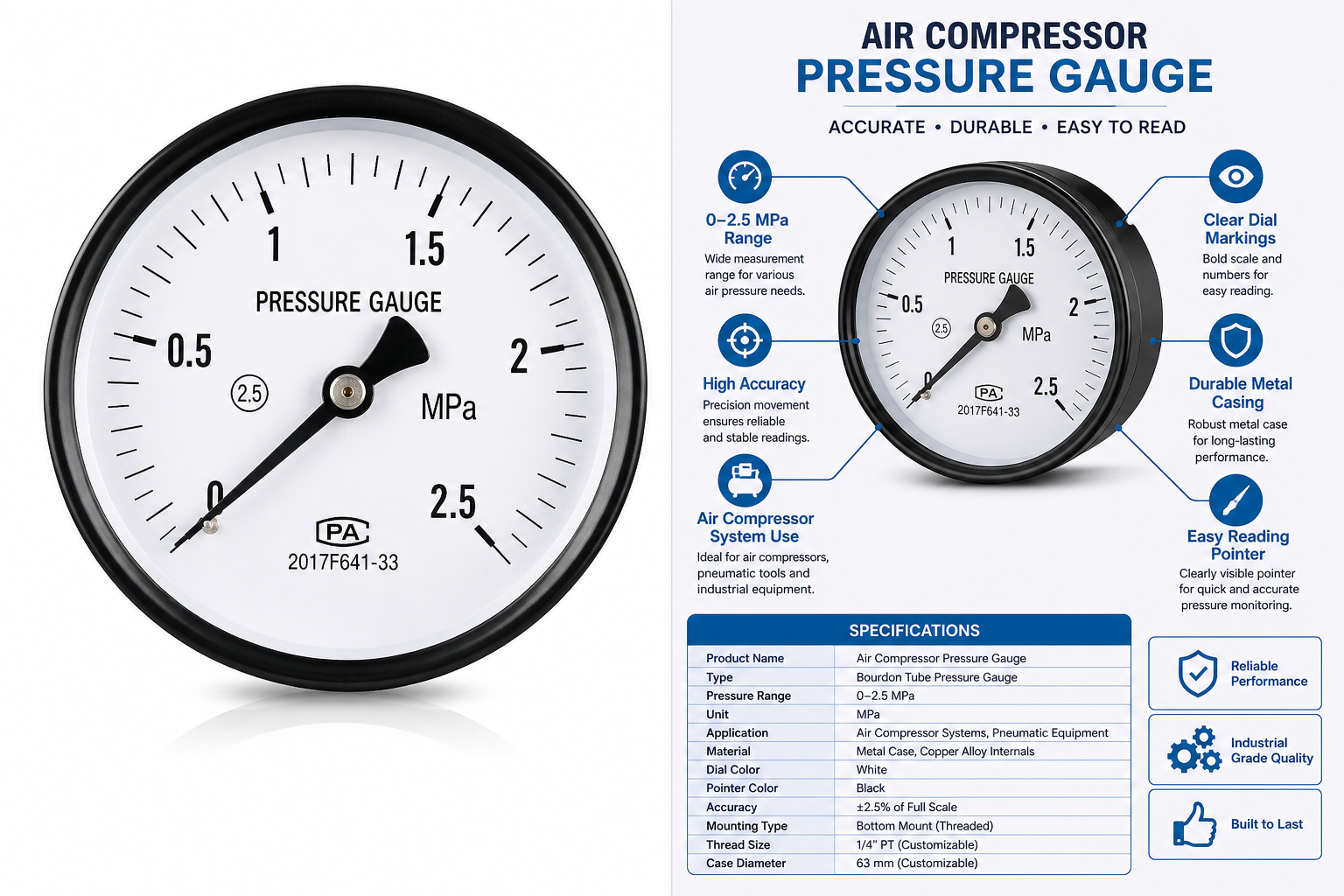

Air Compressor System Pressure Gauge — 0 to 2.5 MPa
Purpose-built for compressed air systems, this pressure gauge delivers clear, reliable readings on air compressor receiver tanks, distribution manifolds, and pneumatic line regulators. The single MPa scale eliminates confusion — what you see is what your system runs at.
Key Specifications
Parameter
Detail
Dial Size
2.5" / 63mm
Pressure Range
0–2.5 MPa (0–25 bar / 0–360 PSI)
Accuracy Class
2.5
Connection
Brass BSP thread, bottom-mount
Case Material
Matte black painted steel
Dial Face
White with black MPa scale
Pointer
Black, factory-calibrated
Lens
Tempered glass
Operating Temperature
-20°C to +60°C
Protection
IP54 (dust and splash resistant)
Certification
CE, PA marked
Features
Clear MPa single-scale dial— one scale, one reading, zero ambiguity. Graduations every 0.5 MPa with 10 subdivisions for 0.05 MPa resolution. Designed for technicians who work in MPa every day.
Matte black steel case— powder-coated housing resists corrosion, shop chemicals, and daily wear. The matte finish reduces glare under overhead lighting for easier dial reading.
Brass thread connection— precision-machined BSP thread with clean-cut ridges for a positive seal. Compatible with standard air compressor tank ports, T-fittings, and manifold blocks.
Tempered glass lens— impact-resistant protection against shop debris, oil spray, and solvent splashes. Won't cloud or yellow like plastic lenses.
PA safety compliance— meets pressure equipment safety requirements with verified overpressure tolerance.
Typical Applications
Air compressor receiver tank pressure monitoring
Compressed air distribution manifold
Pneumatic system regulator stations
Food-grade compressed air lines (stainless fitting compatible)
Industrial HVAC pneumatic controls
Workshop and factory air supply lines
Installation Notes
Apply thread seal tape or appropriate gasket before installation for a leak-free seal.
Tighten using a wrench on the hex nut only — never grip the case body.
For direct pump outlet mounting, install a snubber or needle valve between the gauge and pump to absorb pressure pulsation and prevent premature wear.
Maintain working pressure within 1/3 to 3/4 of full scale (0.8–1.9 MPa) for optimal accuracy and service life.
Recommended recalibration interval: 12 months.
What's in the Box
1× Air Compressor System Pressure Gauge (0–2.5 MPa)
1× Thread seal tape
1× Calibration certificate
1× Product specification sheet
Why Choose AFANTI
AFANTI Instruments has been manufacturing pressure gauges for nearly 20 years in Taizhou, China — the country's instrumentation hub. Every gauge undergoes a 3-stage quality process before leaving the factory: static overpressure test at 1.3× full scale, 10,000-cycle fatigue test, and 5-point full-scale calibration. Not batch sampling — every single unit. ISO 9001 certified. CE marked for EU compliance.
Need a different range or custom dial?We offer OEM/ODM services with MOQ as low as 50 pieces. Custom dial markings, logo printing, and packaging are all available. Contact us with your requirements.
